Lifeline ARM ACC

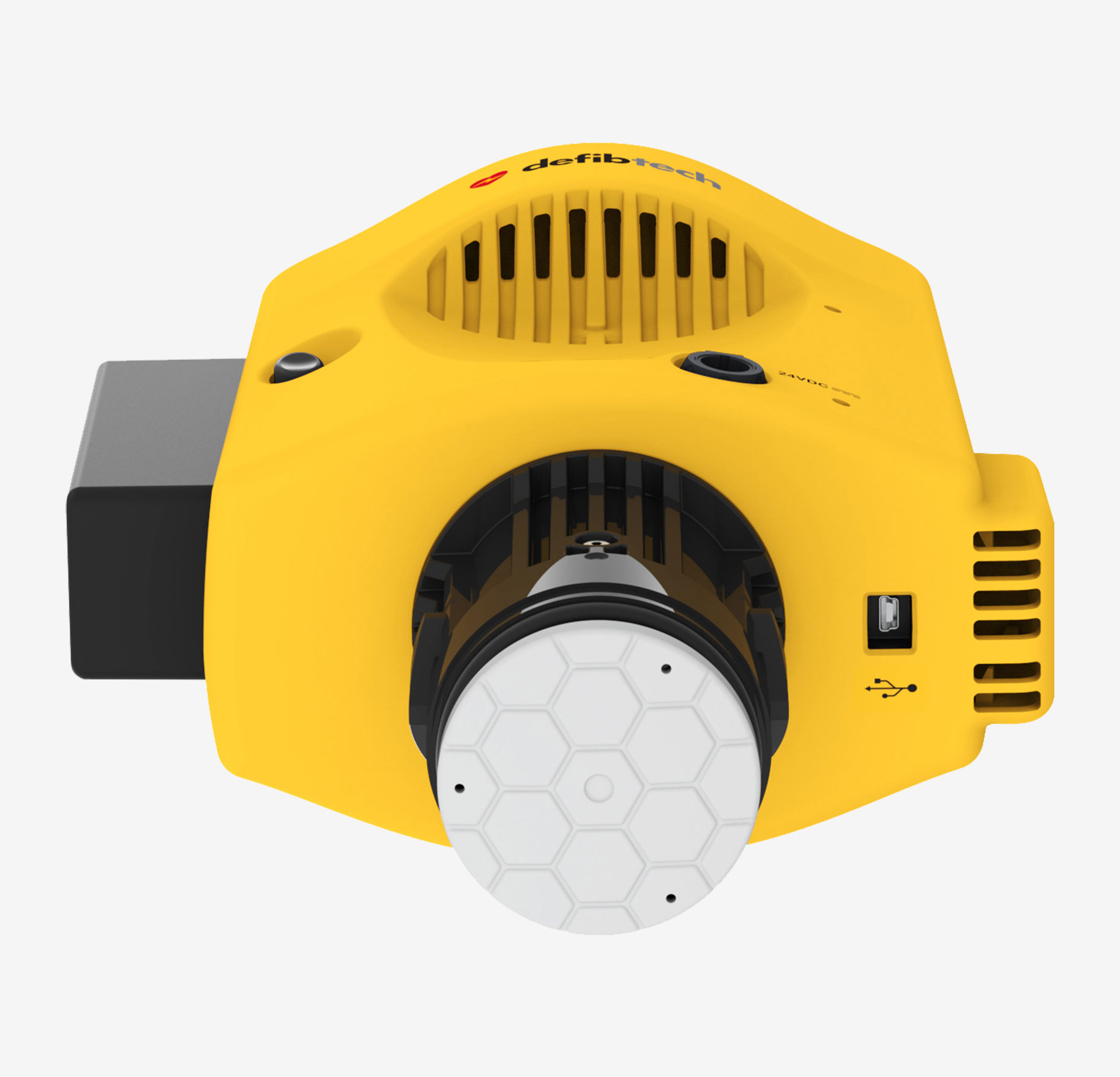

A USB port on the Compression Module enhances the EMS Lifeline ARM’s serviceability in the field and makes it adaptable to future resuscitation requirements. Maintenance functions, such as retrieval of event data, and software upgrades, can be performed through a connection to a personal computer loaded with Defibtech ACC Support Software. A Service Indicator light on the Compression Module flashes to indicate when it is time for periodic servicing.

The EMS Lifeline ARM supports event capture and post-event review. A USB port on the Compression Module provides for data logging downloads of event information through a connection to a personal computer loaded with Defibtech ACC Support Software.

Advanced battery technology, with flexible power options, means the EMS Lifeline ARM will always be ready for rescue. The rechargeable battery pack provides unmatched operational times and long service life across a wide temperature range. By design, fast battery pack swapping, as well as external AC power adapter operation, is possible.

• Long runtime battery pack life (requires less power to accomplish compressions
• Fast battery pack recharge time
• Long useful life battery pack (3 years or about 300 charge/discharge cycles)
• Battery pack inserts in either orientation (with the contacts toward the unit)
• Fast battery pack swapping because of battery pack eject release latches
• External AC power adapter also recharges the battery pack, even during use

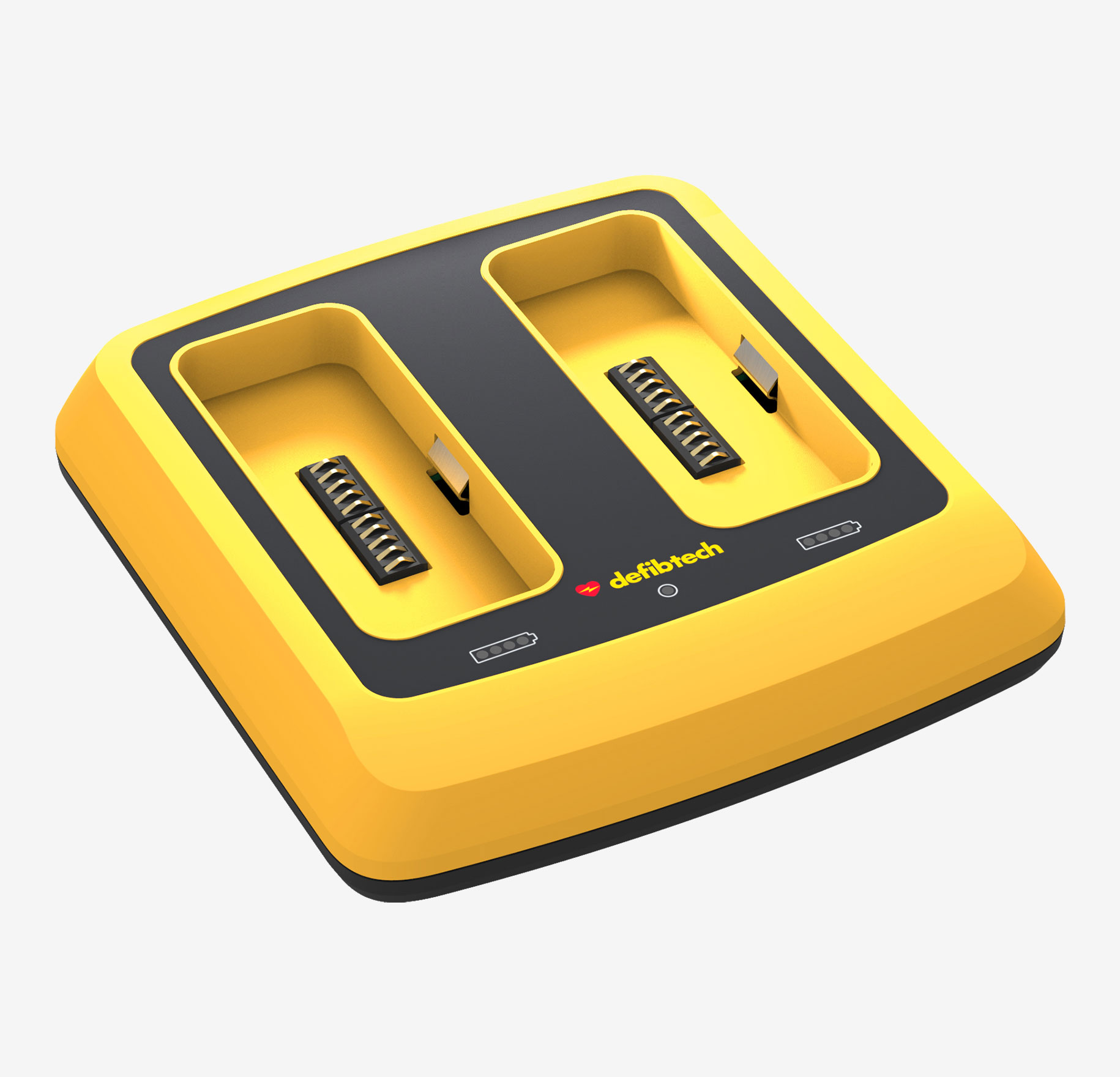

An optional charging station can charge up to two battery packs simultaneously and independently: recharge one depleted battery pack in 2 hours, or two depleted battery packs in 3 hours.

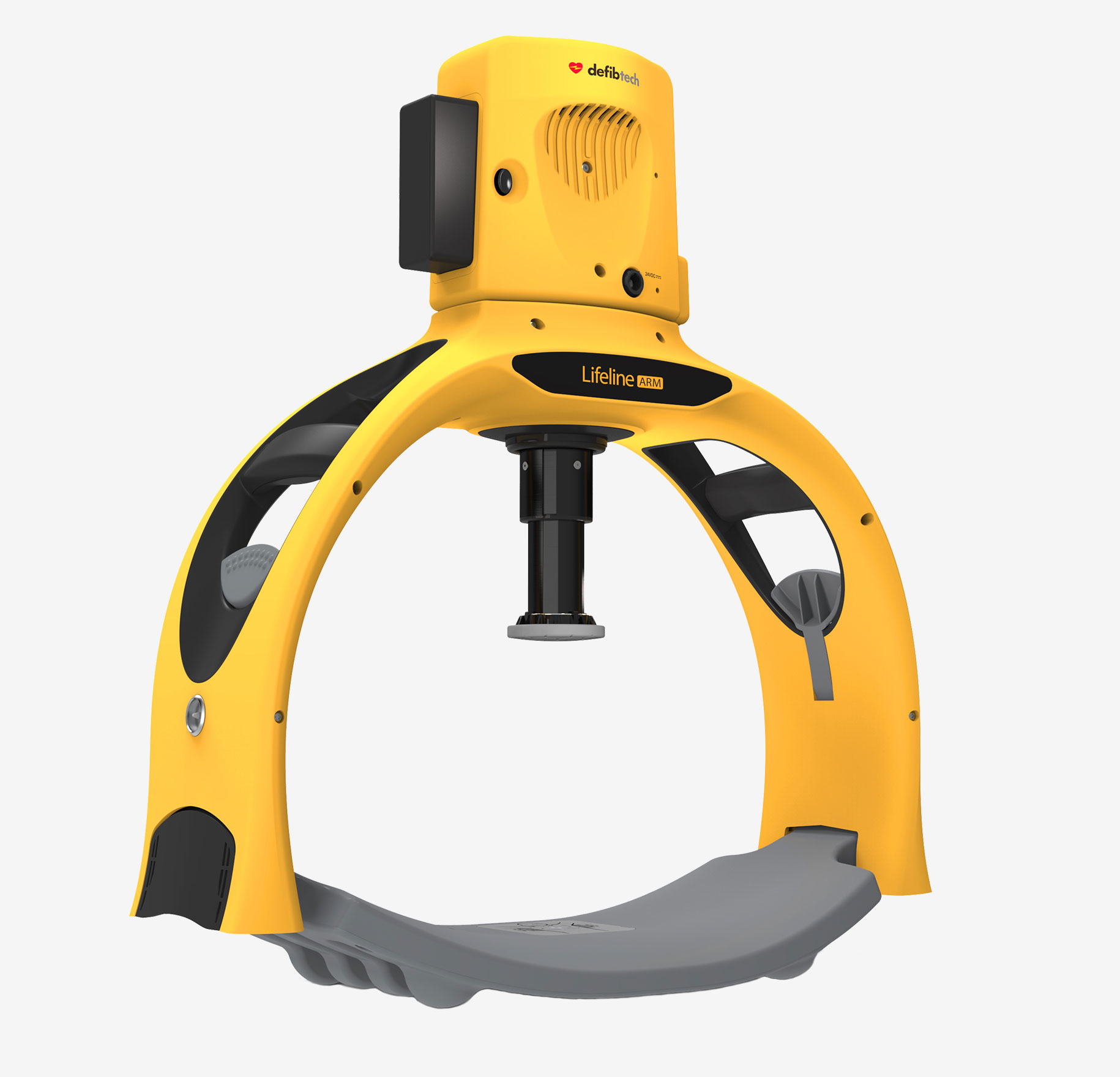

Nicely balanced and lightweight, the Frame’s single-piece design provides increased structural integrity during compressions by facilitating the operation of the Compression Piston without undue deflection or distortion that could compromise consistent compression depth, an important element for effective CPR. Providing enhanced usability during deployment and repacking, the Frame effortlessly snaps into the Backboard, and releases just as easily.

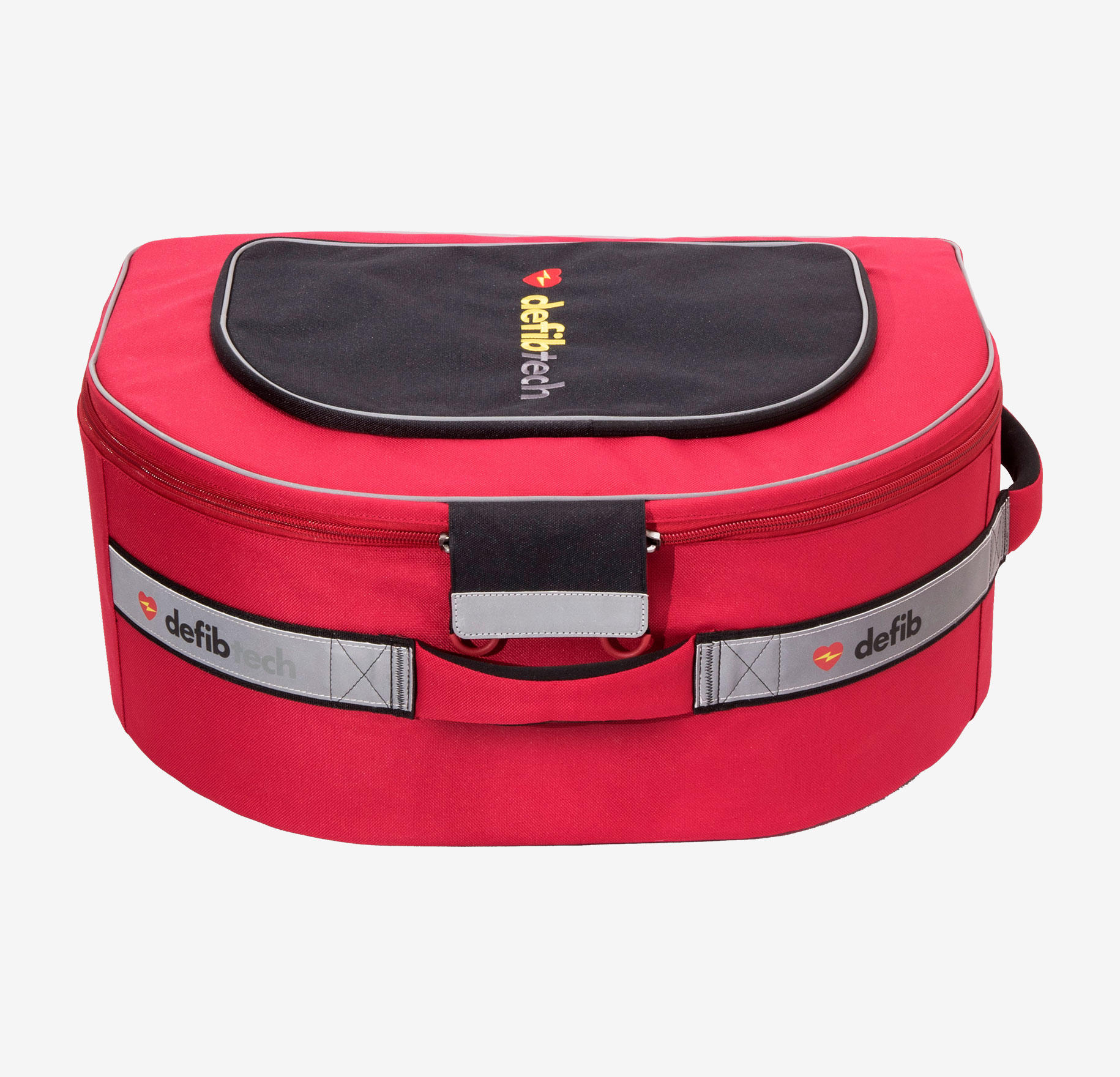

The pace is fast and furious during a rescue. The EMS Lifeline ARM comes packed in a red canvas carrying case designed for backpack portability. The structured bag contains a custom solid foam insert for holding the EMS Lifeline ARM components and spare items, all of which make the device portable, easy to deploy and use, and pack up again quickly.

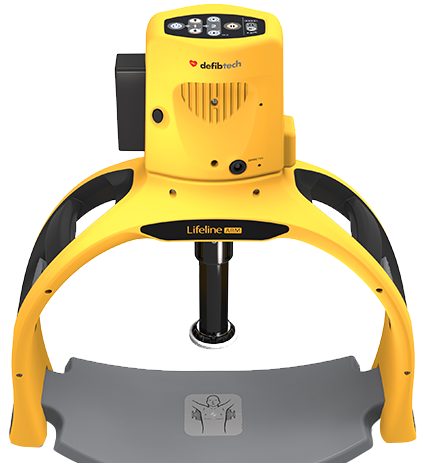

The innovative and elegant design of the EMS Lifeline ARM device affords portability, speedy deployment, and smooth, consistent operation. The Frame’s single-piece design enhances its usability and provides an incredibly strong platform for performing mechanical CPR. The Compression Module contains the Control Panel, a removable and rechargeable battery pack, and the piston drive used to generate the chest compressions. Modularization of the Compression Piston has benefits in all phases of use, particularly during deployment and repacking. It allows the Frame and Backboard to be attached to the patient and aligned before the addition of the Compression Module. Periodic servicing will be so much easier too.

The Frame’s design makes it easy to line it up and connect with the self-locking and self-centering latches of the Backboard, speeding deployment and reducing pinch points. The Compression Piston is supported by the Frame in a drop-in module that self-aligns when inserted into the Frame and swiftly locks into place with a simple twist. The single-use Patient Interface Pad is a cushioned snap clip design that connects to the Compression Piston and remains firmly in place. The interior space of the arched frame was designed to accommodate a very broad range of adult patient sizes.

Easy to operate Backboard release levers, located on each side of the Frame, are used to release the Frame from the Backboard. For increased accessibility, there are two sets of Backboard release levers within the Frame sides offering multiple options for releasing the Frame from the Backboard. The latches may be released together or one at a time.

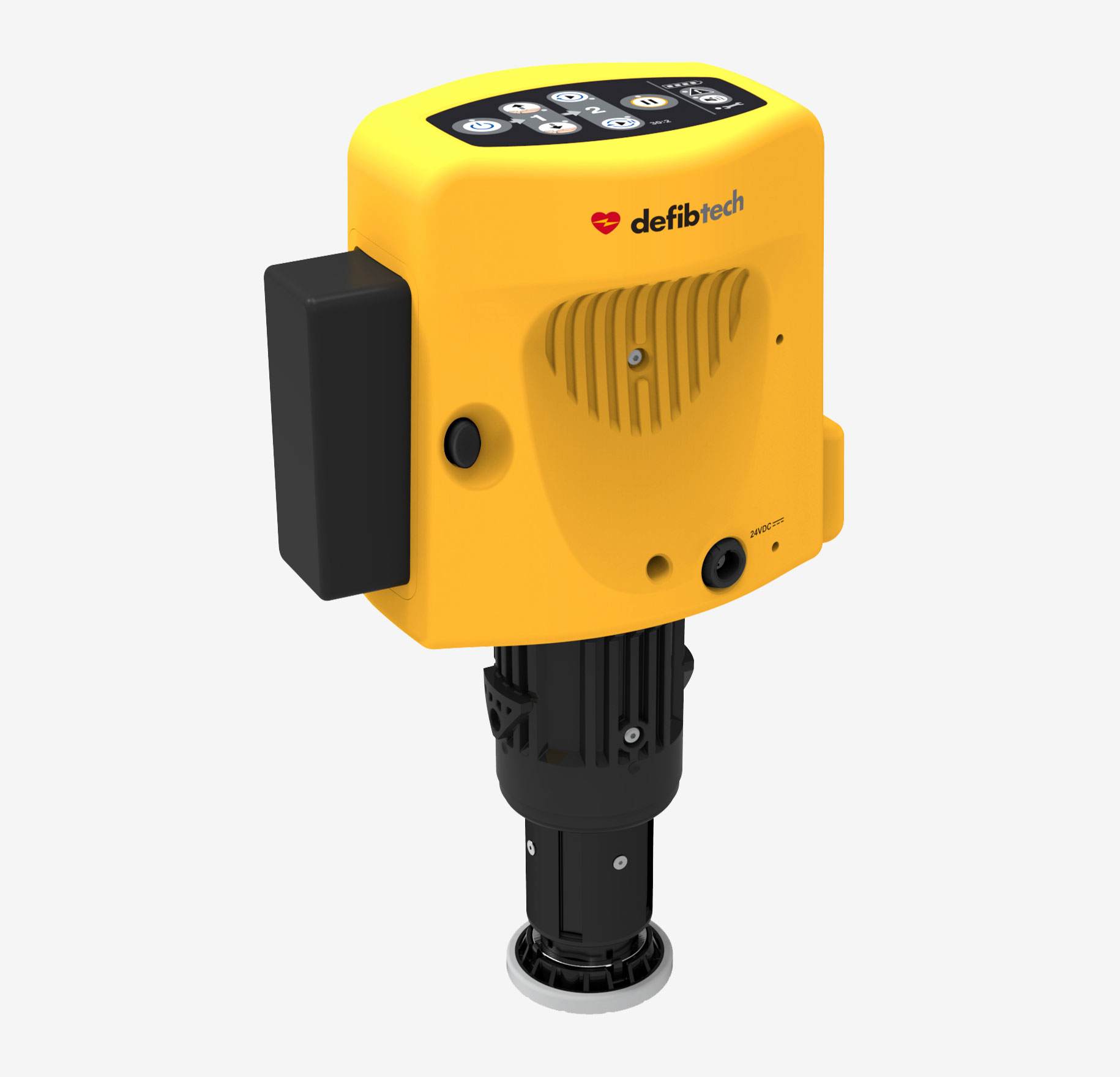

The EMS Lifeline ARM device consists of a state-of-the-art Compression Module paired with a specially designed Frame. Smooth operation results from an innovative custom Piston and brushless DC motor design housed within the Compression Module. During operation, a smart, software-driven, motor control algorithm ensures compression depth and rate consistency by compensating for variability in chest resistance ensuring CPR efficacy.

The EMS Lifeline ARM is designed to accommodate local resuscitation protocols. In accordance with your emergency response procedure during a rescue, you may choose the corresponding softkey button to select between chest compressions only (no breathing) or chest compressions with rescue breaths, for performance according to the compressions-with-breaths protocol. When using the compressions-with-breaths protocol, a reminder chirp and flashing LED are used as notifications during the three compressions prior to the device pausing for the operator to give rescue breaths. If needed, the user may toggle between the two protocols during the rescue.

The structural design and choice of materials of the Frame and Backboard result in an extremely durable and impact-resistant device, making it one tough unit. Built to exacting standards, the EMS Lifeline ARM is manufactured to withstand small particulates and water spray and meets military standards for shock and vibration testing.
