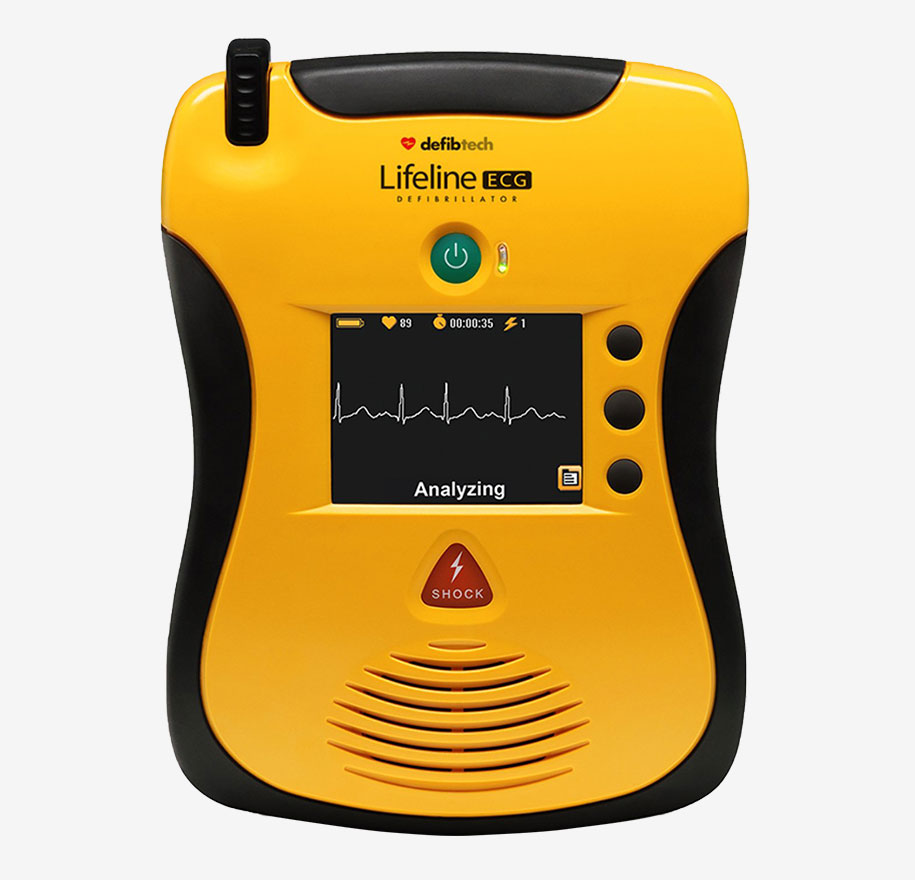

Lifeline ECG AED

The AED with rhythm

Meet the AED that’s taking easy-to-use to a whole new level. The Lifeline ECG AED is part of the Lifeline VIEW family of defibrillators that are the first AEDs with full-motion, high-resolution color video. The Lifeline ECG AED offers the ability to view step-by-step CPR videos or ECG information. Additionally, the Lifeline ECG AED can be used in a non-diagnostic ECG monitoring mode, to allow for rhythm and heart rate monitoring.

Video & ECG Display

They say a picture is worth a thousand words; now multiply that with the power of video. The Lifeline ECG AED has a large, full-color interactive display with step-by-step CPR steps, rescue breathing tips plus external defibrillation.
The Lifeline ECG AED allows users to display the patient's ECG data and event information while in AED mode using defibrillation pads.
When sudden cardiac arrest strikes, there is no time to lose. You need to be sure that your AED is ready for rescue. Most other AEDs only signal when there’s a problem. The Lifeline ECG AED’s one touch status screen lets you know that the unit is up to date and in working order—without turning it on.

A Personal Coach At Your Side

In the middle of the rescue, you may not remember how many compressions to provide and the timing between each one. The Lifeline ECG has a built-in metronome that counts out the beat so you know what to do and when to do it. When this icon is present on the screen (during a rescue), the user may press the corresponding softkey button to select CPR coaching with compressions only (no breathing) or CPR coaching with compressions and breathing.

Real-Time Protocol Selection

Switch rescue protocols without skipping a beat, giving you the comfort and confidence to deliver emergency care your way.

Durable

The ECG’s ruggedness is measured by a specific set of criteria. It is one tough little unit, coming out on top in some of the most demanding environmental tests.

Award-Winning Ergonomic Design

Compact, portable and lightweight—under three pounds—the Lifeline ECG AED represents the newest generation in a family of defibrillators that have won a number of industry awards for design and innovation.

Simple to Use

One of the major problems with most AEDs is maintenance. Not with the Lifeline ECG AED. The status screen gives you up to the minute information on maintenance and if it’s required. In addition, built-in video help gives you easy, step-by-step guidance on maintenance that supplements the user manual. Proactive reporting monitors the status of the device and its components.
As protocols change over time, your unit can be upgraded in the field through a USB cable or a data card.
Data from the unit can be recorded or retrieved from the device using a card or USB cable.

Safe and Effective

The Lifeline ECG AED uses biphasic technology, a clinically proven waveform, and algorithm to deliver shocks and save lives. This is one of the most widely used impedance compensated waveforms that has extensive clinical experience and success in thousands of defibrillators around the world. Extensive evaluation in peer-reviewed publications has demonstrated this technology to be the safest and most effective when it comes to saving lives.

One-Touch Status Screen

When sudden cardiac arrest strikes, there is no time to lose. You need to be sure that your AED is ready for rescue. Most other AEDs only signal when there's a problem. The Lifeline ECG's one touch status screen gives you everything you need to know that the unit is up to date and in working order -- without turning it on.

The Lifeline ECG runs extensive self-tests daily to be sure that it’s working properly.

A bright, active status indicator light lets you know the unit is ready.

The device instantly communicates the operational status of the AED, battery and pads, expiration dates, and even gives you unit information such as its serial number.

Defibtech Lifeline AED Semi-Automatic Defibrillator

Technical specifications^†

^†Specifications subject to change without notice

Download specifications PDF

Operating Modes

AED with Video Display
High-resolution LCD displays full-motion animated instructions with CPR coaching

AED with ECG Display
High-resolution LCD displays ECG data and event information

Defibrillator

Type
Semi-automatic external defibrillator
Model
DDU-2450
Waveform
Impedance Compensated Biphasic Truncated Exponential
Energy
Adult: 150 Joules
Child / Infant: 50 Joules
(Nominal into 50 Ohm load)

Charge Time
4 seconds or less (from shock advised)*
Controls
Lighted On / Off button
Lighted Shock button
Display
High-resolution color LCD
Video Prompts
Full motion video
On-screen text prompts

CPR Coaching
Video and voice coaching
On-demand video help
Voice Prompts
Extensive voice prompts guide user through operation of the unit
Rescue Protocol
AHA / ERC (default); supports protocol updates by the user (password protected)

Patient Analysis System

Patient Analysis
Automatically evaluates patient impedance for proper pad contact
Monitors signal quality and analyzes patient ECG for shockable / non-shockable rhythms.

Sensitivity / Specificity
Meets or exceeds IEC-60601-2-4 requirements; meets AAMI DF80 requirements and AHA recommendations

Event Documentation

Internal Event Record
Critical ECG segments and rescue event parameters are recorded (greater than 60 minutes) and can be downloaded to a removable data card
Monitors signal quality and analyzes patient ECG for shockable / non-shockable rhythms.
PC-Based Event Review
ECG with event tag display, and audio playback when available

Removable Storage
(optional) Up to 30 hours of ECG and event data storage (no audio option) or up to 3 hours of audio (audio option)
ECG and event storage on a removable data card. Actual length of storage is dependent on card capacity
USB Port
Event download and maintenance operations

Self Tests

Automatic
Automatic daily, weekly, monthly and quarterly circuitry tests
Battery Insertion
System integrity test on battery insertion

Pad Presence
Pads preconnected tested daily
User-Initiated
Unit and battery pack system test initiated by the user

Status Indication
Visual and audible indication of unit status
Status Screen
Unit self-test results
Pads and battery information (status and expiration)

Defibrillation/Monitor Pads

Model
Adult: DDP-2001
Child / Infant: DDP-2002

Surface Area**
Adult: 12 inches2 (77 cm2)
Child / Infant: 7.75 inches2 (50 cm2)

Type
Pre-connected, single-use, non-polarized, disposable, self-adhesive electrodes with cable and connector

**Nominal, each pad

Battery Packs

Model
DBP-2003 (standard),
DBP-2013 (aviation)
Power
12V, 2800 mAh

Type
Lithium/Manganese Dioxide
Disposable, recyclable, non‑rechargeable
Capacity^*
125 shocks or 8 hours continuous operation

Standy Life^*
4 years
Low Battery Indicators
Visible
Audible

*Typical, with new battery at 25°C

Environmental

Temperature
Operating: 0 to 50°C (32 to 122°F)
One Hour Operating Temperature
Limit (extreme cold): –20°C (–4°F)^***
Standby: 0 to 50°C (32 to 122°F)
Relative Humidity
Operating / Standby: 5%-95% (non-condensing)
Altitude
-500 to 15,000 ft (-150 to 4500 m) per MIL-STD-810F 500.4 Procedure ll

Vibration
Ground (MIL-STD-810F 514.5 Category 20)
Helicopter (RTCA/DO-160D, Section 8.8.2, Cat R. Zone 2, Curve G)
Jet Aircraft (RTCA/DO-160D Section 8, Cat H, Zone 2, Curves B & R)
Shock / Drop Abuse Tolerance
MIL-STD-810F 516.5 Procedure IV
48 inches (1.2 meters), any edge, corner, or surface, in standby mode

Sealing / Water Resistance
IEC 60529 class IP55;
Dust Protected,
Protected against water jets (Battery pack installed)
ESD
(EC 61000-4-2: (Open air up to 15kV or direct contact up to 8kV)
EMC (Emission)
CISPR 11 Group 1 Level B and FCC Part 15
EMC (Immunity)
IEC 61000-4-3 and IEC 61000-4-8

***From room temperature to temperature extreme, one hour duration, updated specification for DDU-2000 Series AEDs running software revision 2.4 or above

Physical

Size
7.3 x 9.5 x 2.3 Inches (18.5 x 24 x 5.8 cm)

Weight (Approximate)
Less than 3 lbs (1.4 kg)

Brief Summary of Indications, Contradictions, and Other Important Safety Information

When should the Defibtech Automated External Defibrillator (AED) be used - what are its indications?
Lifeline/ReviveR VIEW DDU-2300 and Lifeline/ReviveR ECG DDU-2450 Automated External Defibrillators (AEDs) are indicated for use on victims of sudden cardiac arrest (SCA) who are:
- Unconscious and unresponsive
- Not breathing or not breathing normally
Lifeline/ReviveR VIEW DDU-2300 and Lifeline/ReviveR ECG DDU-2450 AEDs may be used with Defibtech adult defibrillation pads (model number DDP-2001). For patients under 8 years old, or weighing less than 55 lbs (25 kg), use Defibtech child/infant defibrillation pads (model number DDP-2002), if available.
When should the Defibtech AED not be used - what are its contraindications?
Lifeline/ReviveR VIEW DDU-2300 and Lifeline/ReviveR ECG DDU-2450 Automated External Defibrillators (AEDs) should not be used if the victim is responsive or conscious.
What other information is important about using the AED?
Do not delay therapy to determine the exact age or weight. If pediatric pads are not available, apply adult pads in the position as shown for a child/ infant and use the AED.
What are the potential adverse health effects of using an AED?
The potential adverse effects (e.g., complications) associated with the use of an automated external defibrillator include, but are not limited to, the following:
- Failure to identify shockable arrhythmia.
- Failure to deliver a defibrillation shock in the presence of VF or pulseless VT, which may result in death or permanent injury.
- Inappropriate energy, which could cause failed defibrillation or post-shock dysfunction.
- Myocardial damage.
- Fire hazard in the presence of high oxygen concentration or flammable anesthetic agents.
- Incorrectly shocking a pulse sustaining rhythm and inducing VF or cardiac arrest.
- Bystander shock from patient contact during defibrillation shock.
- Interaction with pacemakers.
- Skin burns around the defibrillation pads placement area.
- Allergic dermatitis due to sensitivity to the materials used in the defibrillation pads construction.
- Minor skin rash.
What are some of the relevant cautions related to the AED?
- Follow all battery pack labeling instructions. Do not install battery packs after the expiration date.
- Follow all defibrillation pad label instructions. Use defibrillation pads prior to their expiration date.
- Use and store the DDU-2000 Series AED only within the range of environmental conditions specified in the technical specifications.

What are some of the relevant warnings related to the AED?
- Hazardous electrical output. This equipment is for use only by qualified personnel.
- Possible fire or explosion. Do not use in the presence of flammable gases or anesthetics. Use care when operating this device close to oxygen sources (such as bag-valve-mask devices or ventilator tubing). Turn off the gas source or move the source away from the patient during defibrillation, if necessary.
- The DDU-2000 Series AED has not been evaluated or approved for use in hazardous locations as defined in the National Electric Code standard. In compliance with IEC classification, the DDU-2000 Series AED is not to be used in the presence of flammable substance/air mixtures.
- Improper maintenance can cause the DDU-2000 Series AED not to function. Maintain the DDU-2000 Series AED only as described in the User Manual and Operating Guide. The AED contains no user-serviceable parts — do not take the unit apart.
- Do not open a sealed pads package until pads are to be used. The packaging should be opened only immediately prior to use, otherwise, the pads may dry out and become non-functional.
- Do not touch the patient during defibrillation. Defibrillation current can cause operator or bystander injury.
- The defibrillation pads are intended for one-time use only and must be discarded after use. Reuse can lead to potential cross-infection, improper performance of the device, inadequate delivery of therapy, and/or injury to the patient or operator.
- CPR during analysis can cause incorrect or delayed diagnosis by the patient analysis system.
- User-initiated and automatic self-tests are designed to assess the DDU-2000 Series AED’s readiness for use. However, no degree of testing can assure performance or detect abuse, damage, or a defect that occurred after the most recent test is completed.
- Even if defibrillation occurs, the sudden cardiac arrest event may not result in survival.
Caution: Federal (U.S.A.) law restricts this device to sale by or on the order of a physician.
Please refer to the Operating Guide provided with your AED for user instructions, a complete list of warnings and cautions, operator training requirements, a summary of primary clinical studies, technical specifications, and other important information. The Operating Guide, for concise guidance on set-up, use, maintenance, and technical specifications, and User Manual, for comprehensive training on set-up, use and maintenance; and source for complete technical specifications, are also available at www.defibtech.com/support.

Downloads

DDU-2450 User Manual (current version)

Operation, maintenance and technical specification guidelines for the Defibtech Lifeline ECG AED.

Download PDF

DDU-2450 Operating Guide (current version)

Quick reference guide for the Defibtech Lifeline ECG AED.

Download PDF
